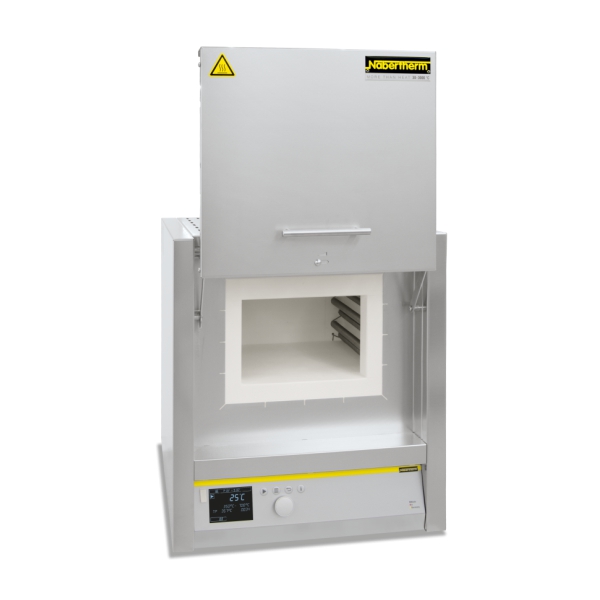

Nabertherm Muffle Furnaces up to 1400°C
Categories: Tags:

    Name (required)

    Email (required)

    Phone (required)

    Country (required)

    Product

    Message

    These models stand out for their excellent workmanship, advanced and attractive design, and high level of reliability. Heating elements on support tubes radiating freely into the furnace chamber provide for particularly short heating times and a maximum temperature of 1400 °C. These muffle furnaces are a good alternative to the familiar L(T) ../12 series when higher application temperatures are needed.

    • Tmax 1400 °C
    • Heating from two sides
    • Heating elements on support tubes ensure free heat radiation and a long service life
    • Adjustable air inlet integrated in door · Exhaust air outlet in the rear wall of furnace · Controller B410

    Features

    • Tmax 1400 °C
    • Heating from two sides
    • Heating elements on support tubes ensure free heat radiation and a long service life
    • Dual shell housing made of textured stainless steel sheets with additional fan cooling for low surface temperature
    • Exclusive use of insulation materials without categorization according to EC Regulation No. 1272/2008 (CLP)
    • Adjustable air inlet integrated in door
    • Exhaust air outlet in rear wall of furnace
    • Controller B410 (5 programs with each 4 segments)
    • Solid state relays provide for low noise operation
    • Defined application within the constraints of the operating instructions
    • NTLog Basic for Nabertherm controller: recording of process data with USB-flash drive

    Specifications

    Model  L, LT 5/14  L, LT 9/14  L, LT 15/14
    Capacity, L  5  9  15
    Temp uniformity of +/- 5K, W  170  180  180
    Connected Load, kW  2.4  3.2  3.2
    Heating up time (mins)  50  50  70
    Ext. Dims2 WxDxH3, mm  490x450x580+320  530x525x630+350  530x625x630+350
    Int. Dims WxDxH, mm  200x170x130  250x250x170  250x350x170
    Net Weight, Kg  42  55  63

    Ordering Information

    L-052U4RN10 Muffles Furnace with Fiber Insulation and Flap Door 1400 Degrees with B410 Controller, 5 Litre
    L-092U4RN8 Muffles Furnace with Fiber Insulation and Flap Door 1400 Degrees with B410 Controller, 9 Litre
    L-152U4RN11 Muffles Furnace with Fiber Insulation and Flap Door 1400 Degrees with B410 Controller, 15 Litre
    L-052U4TN10 Muffles Furnace with Fiber Insulation and Flap Door 1400 Degrees with C450 Controller, 5 Litre
    L-092U4TN8 Muffles Furnace with Fiber Insulation and Flap Door 1400 Degrees with C450 Controller, 9 Litre
    L-152U4TN11 Muffles Furnace with Fiber Insulation and Flap Door 1400 Degrees with C450 Controller, 15 Litre
    L-052V4RN10 Muffles Furnace with Fiber Insulation and Lift Door 1400 Degrees with B410 Controller, 5 Litre
    L-092V4RN8 Muffles Furnace with Fiber Insulation and Lift Door 1400 Degrees with B410 Controller, 9 Litre
    L-152V4RN11 Muffles Furnace with Fiber Insulation and Lift Door 1400 Degrees with B410 Controller, 15 Litre
    L-052V4TN10 Muffles Furnace with Fiber Insulation and Lift Door 1400 Degrees with C450 Controller, 5 Litre
    L-092V4TN8 Muffles Furnace with Fiber Insulation and Lift Door 1400 Degrees with C450 Controller, 9 Litre
    L-152V4TN11 Muffles Furnace with Fiber Insulation and Lift Door 1400 Degrees with C450 Controller, 15 Litre
