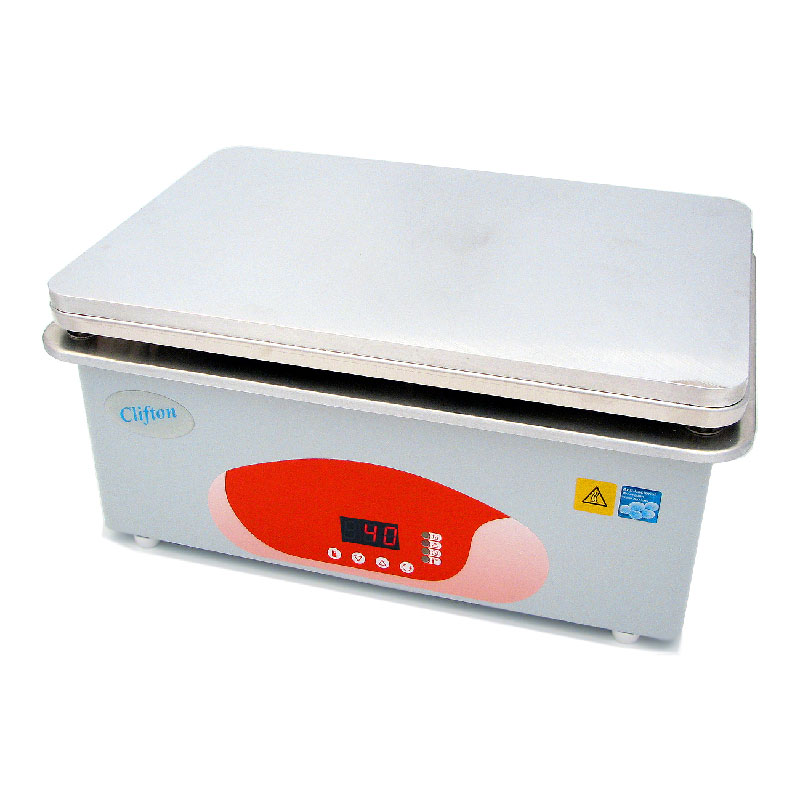

This digital hotplate features a precision PID control providing degree-by-degree temperature setting and control, for refined hotplate sensitivity. Temperature and time settings are retained in memory, even after power off.
Featuring a hob surface, which overlaps the body to ensure that no spillages enter the controls. The hob is solid aluminium, 12mm thick for excellent thermal properties and uniform heat distribution over its working area.
Painted surfaces and controls feature antibacterial protection and also chemically resistant, easy to wipe clean surfaces. The controls feature a bright LED display indicating measured temperature. Temperature settings can be easily adjusted using the push buttons.
Sand bath kits allow samples to be directly immersed in a dry and high temperature environment. The product accepts standard laboratory retort rods which enable scaffolding to be constructed so that vessels can be heated without direct contact with hot surface.
Product Information
| Product Code | Dimensions | Temp Range | Temp Display | Temp Alarm | Sensitivity | Uniformity | Timer | Hob maximum load, guidance | Retort Points | Heater Power (220-240V) | Voltage | Packed Weight |
| HP1-1D | External: 325w x 260d x 200h mm
Hob dimensions: 305w x 240d mm Packed: 33 x 27 x 20cm |
ambient +10° – 350°C | PID Digital, LED display, resolution 1°C | Over temperature alarm is automatically set 10˚C above set point. | ±0.5°C @ 60°Cb | ±0.5°C @ 60°C | variable, 00:01 to 99:59 [hh:mm] Activates at set temperature | 8kg @ maximum 300°CMass evenly spread across Hob | single M10 fixing point, rear hotplate | 1000W | 230W | 7.2Kg |
| HP1-2D | External: 477w x325d x 200h mm
Hob dimensions: 457w x 305d mm Packed: 53 x 21 x 38 cm |
ambient +10° – 350°C | PID Digital, LED display, resolution 1°C | Over temperature alarm is automatically set 10˚C above set point. | ±0.5°C @ 60°C | ±0.5°C @ 60°C | variable, 00:01 to 99:59 [hh:mm] Activates at set temperature | 8kg @ maximum 300°CMass evenly spread across Hob | double M10 fixing points, rear hotplate | 2000W | 230V | 13.5kg |
| HP1-3D | External: 706w x 325d x 200h mm
Hob dimensions: 686w x 305d mm Packed : 81 x 36 x 44 cm |
ambient +10° – 350°C | PID Digital, LED display, resolution 1°C | Over temperature alarm is automatically set 10˚C above set point. | ±0.5°C @ 60°C | ±0.5°C @ 60°C | variable, 00:01 to 99:59 [hh:mm] Activates at set temperature | 8kg @ maximum 300°CMass evenly spread across Hob | double M10 fixing points, rear hotplate | 2400W | 230V | 22kg |
